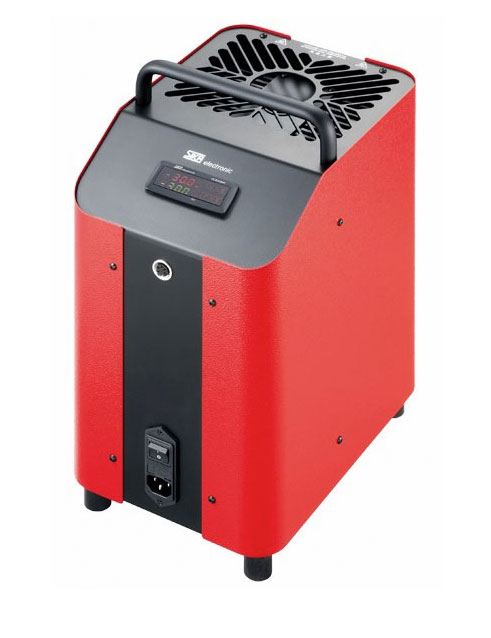

SIKA Temperature Calibrator
SIKA temperature calibrators can be used everywhere, including on site, workshops, test and measurement rooms as well as laboratories. They cover a broad spectrum of industries with diverse applications.
- Assembly and commissioning
- Manufacturing and production
- Maintenance and service
- Quality assurance and test equipment monitoring
- Repair
Specifications
| Type | TP 17650 | |
| Control sensor | Internal | |
| Dry block | ||
| Temperature Range | RT...650°C | RT...1202°F |
| Accuracy | ±0.8°C | 1.44°F |
| Stability | ±0.1°C | 0.18°F |
| Measurement zone | 110... 150 mm | 4.3...5.91 in. |
| Block dimensions | ||
| Diameter | 28 mm | 1.10 in. |
| Depth | 150 mm | 5.91 in. |
| Display unit | ||
| Display | 2-line, 4-digit display Red / green, unit °C / °F |
|
| Display range | 0...650°C | 32...1202°F |
| Resolution | 0.1°C | 0.1 °F between RT...999.9 °F, else 1°F |
| General Data | ||
| Dimensions Width Height Depth |
150 mm 330 + 70 mm 270 mm |
5.91 in. 12.99 + 2.76 in. 10.62 in. |
| Weight | Approx. 7.5 kg. | Approx. 16.53 lbs. |
| Power supply | 230/240 VAC, 50/60 Hz. optional 100...115 VAC, 50/60 Hz. optional 100...240 VAC, 50/60 Hz. |
|
| Power consumption | Approx. 1000W | |
Specifications are subject to change without notice.
Download specifications here.
