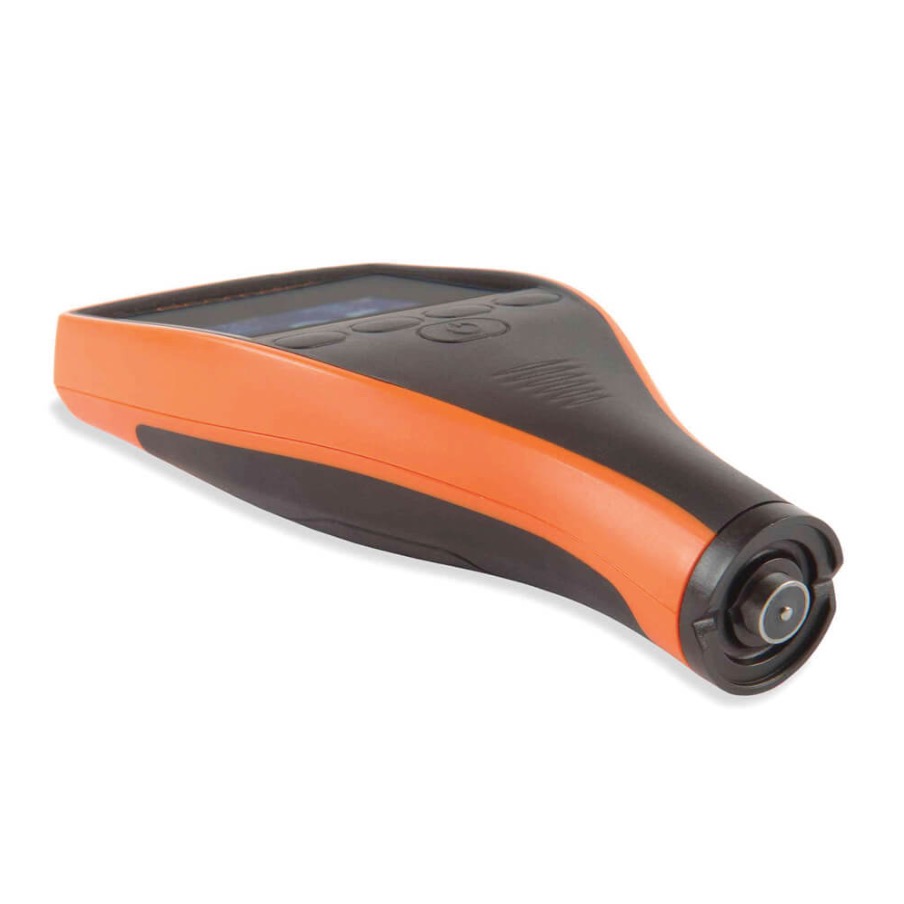

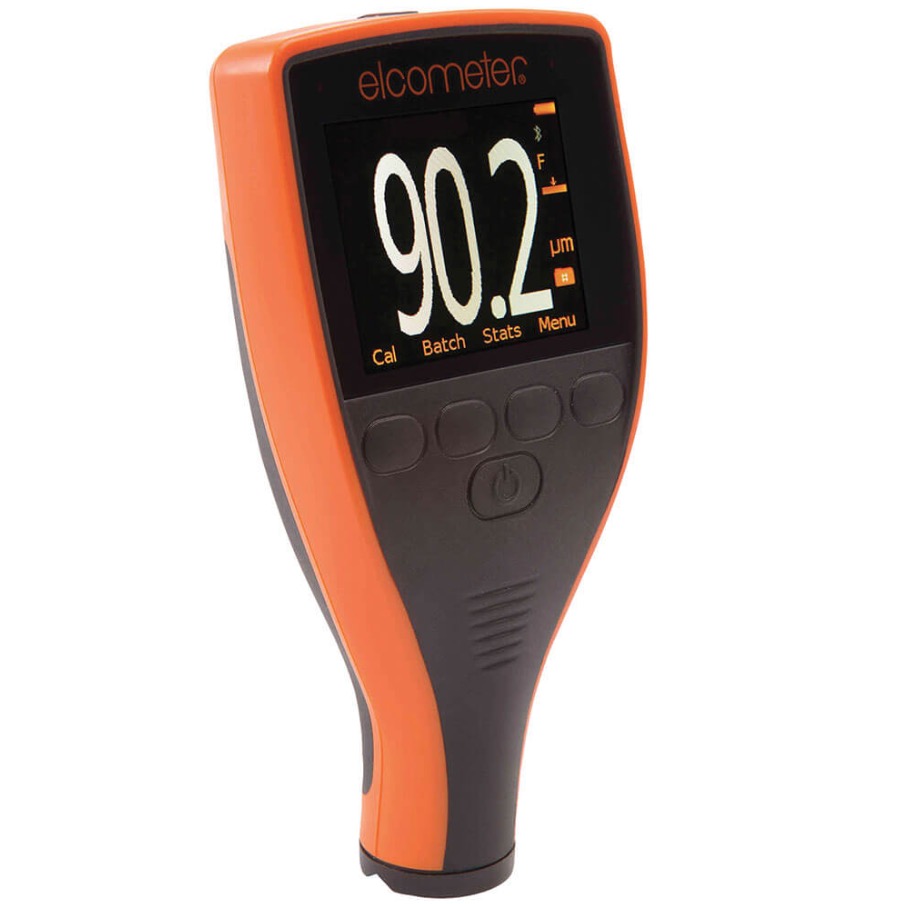

Elcometer 456 Basic

User friendly and reliable. This coating thickness gauge with integral probe for ferrous applications will provide fast and accurate results helping you to become more efficient. Working range of 0-1500 µm (0-60mils) accuracy ±1-3% or ±2.5µm (±0.1mil)  2.4” (6cm) QVGA colour display, gauge memory 5 readings, supplied with 2XAA batteries and Certificate of Calibration.

Model B : $1020.00
Model S : $1235.00
Model T : $1675.00

Technical Specification

Integral Model Options

Scale 1

Range: 0-1500μm (0-60mils)

Accuracy*: ±1-3% or ±2.5μm (±0.1mil)



Resolution: 0.1μm: 0-100μm; 1μm: 100-1500μm (0.01mil: 0-5mils; 0.1mil: 5-60mils)



Model B

Model S

Model T

Elcometer 456 Ferrous Integral

A456CFBI1

A456CFSI1

A456CFTI1

Elcometer 456 Non-Ferrous Integral

A456CNBI1

See separate gauges with

N2 PINIP™ Probe

See separate gauges with

N2 PINIP™ Probe

Elcometer 456 Dual FNF Integral

A456CFNFBI1

A456CFNFSI1

A456CFNFTI1



Scale 2

Range: 0-5mm (0-200mils)

Accuracy*: ±1-3% or ±20μm (±1.0mil)



Resolution: 1μm: 0-1mm; 10μm: 1-5mm (0.1mil: 0-50mils; 1mil: 50-200mils)

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance



Model B

Model S

Model T

C

Elcometer 456 Ferrous Integral

A456CFBI2

See separate gauges with

F2 PINIP™ Probe

See separate gauges with

F2 PINIP™ Probe



Scale 3

Range: 0-13mm (0-500mils)

Accuracy*: ±1-3% or ±50μm (±2.0mils)



Resolution: 1μm: 0-2mm; 10μm: 2-13mm (0.1mil: 0-100mils; 1mil: 100-500mils)



Model B

Model S

Model T

C

Elcometer 456 Ferrous Integral

A456CFBI3

See separate gauges with

F3 PINIP™ Probe

See separate gauges with

F3 PINIP™ Probe

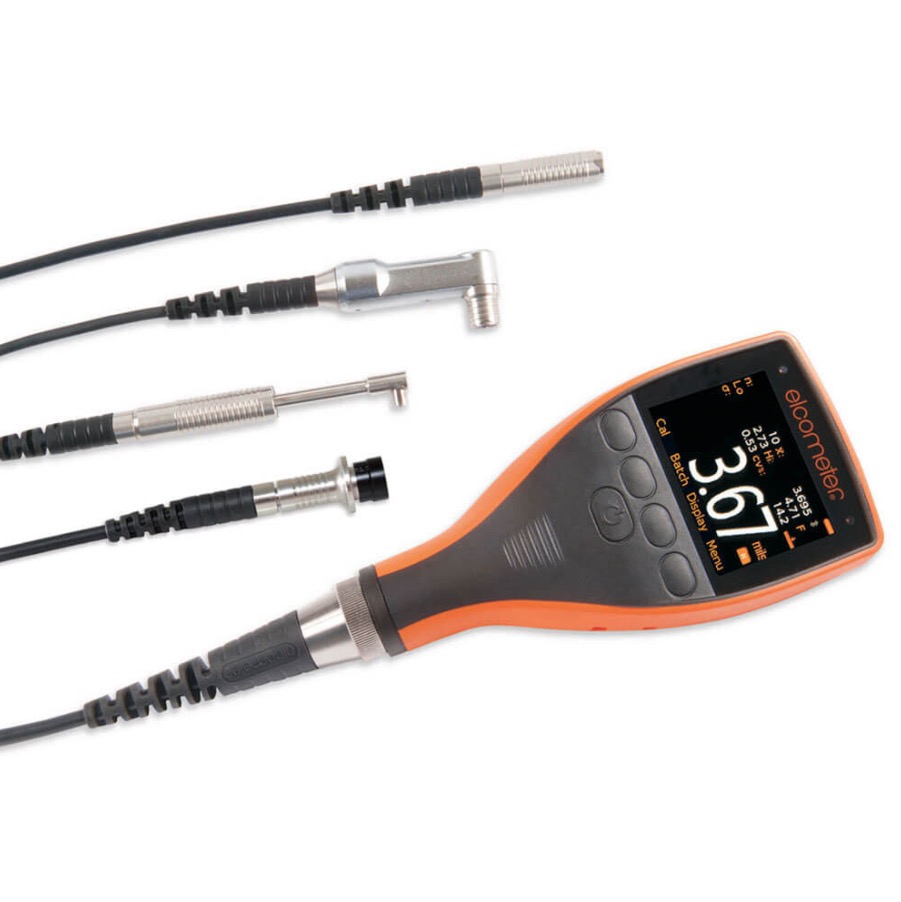

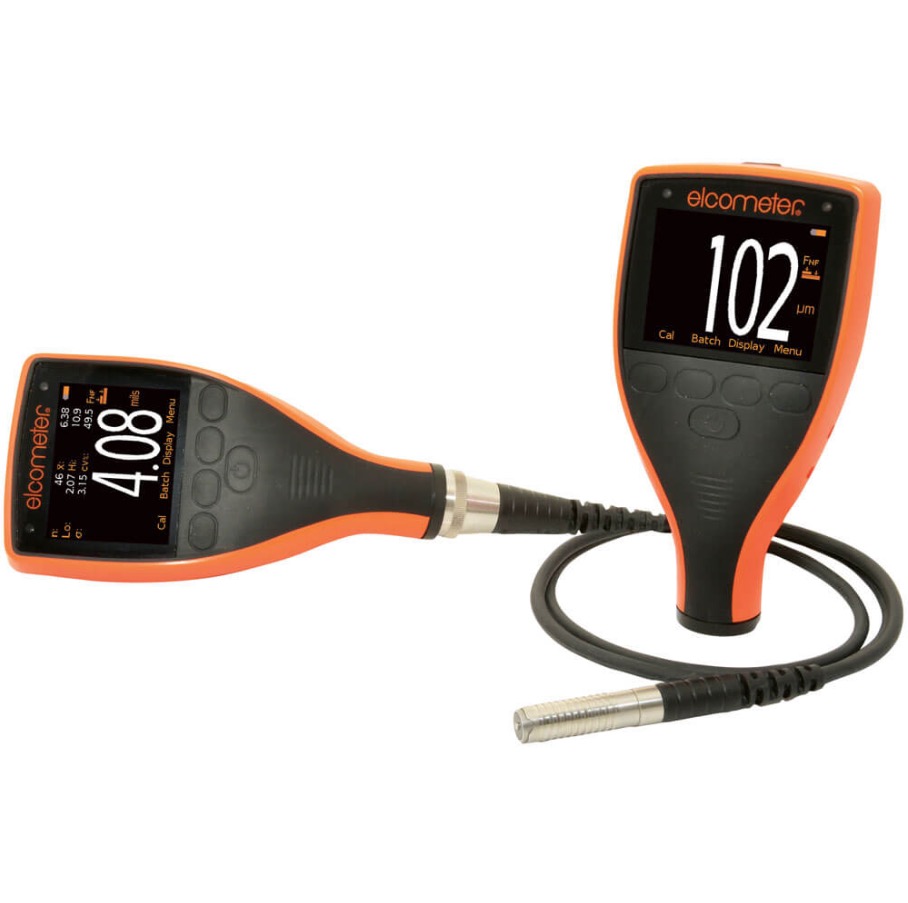

Separate Model Options




Model B

Model S

Model T

C

Elcometer 456 Ferrous Separate

A456CFBS

A456CFSS

A456CFTS

Elcometer 456 Non-Ferrous Separate

A456CNBS

A456CNSS

A456CNTS

Elcometer 456 Dual FNF Separate

A456CFNFBS

A456CFNFSS

A456CFNFTS

Probes are supplied separately
