Elcometer 319 Basic

This rugged Dewpoint meter is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting. Dewpoint, Air Temp, Surface Temp, Relative Humidity, External type K thermocouple (optional), gauge memory 10 readings, supplied with 2XAA batteries and Certificate of Calibration.

G319-S : $1160.00
G319-T : $1310.00

Technical Specification

Model Model S Model T
Part Number G319----S G319----T
Reading Parameters - RH, Ta, Ts, Td, TΔ, Tdb, Twb1, SH1

Statistics - number of readings, standard deviation,
mean, coefficient of variation, minimum, maximum

Dustproof & Waterproof Gauge with Fully Sealed
Sensors - equivalent to IP66

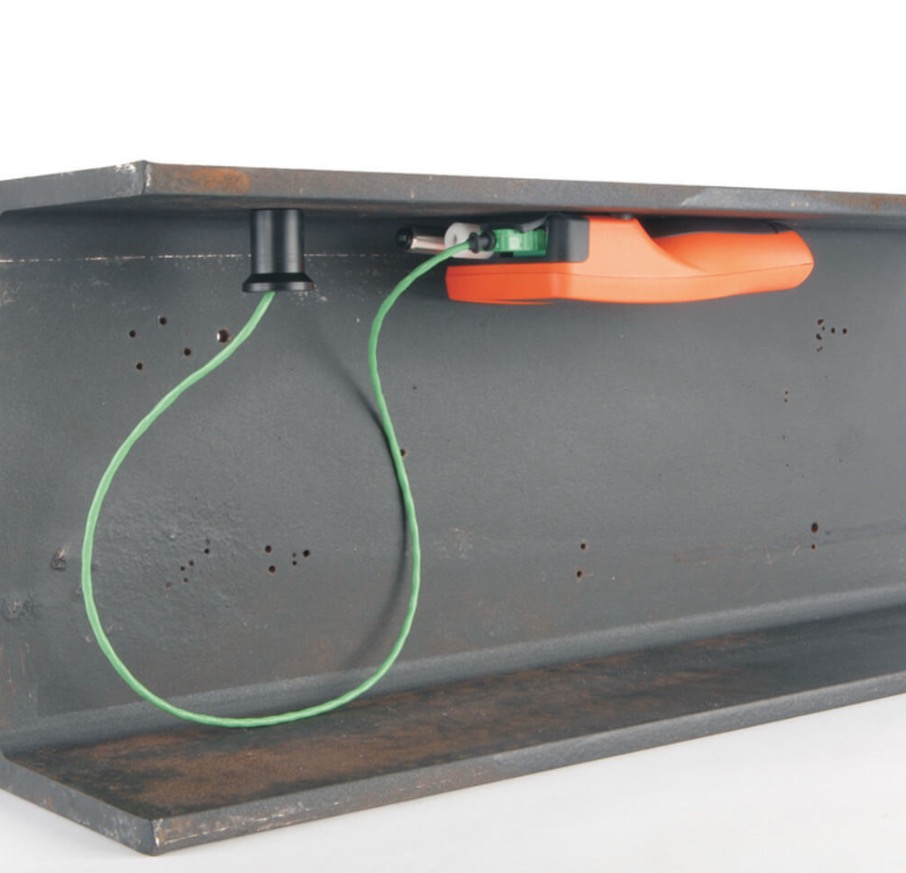

Integral Magnets - secure the gauge during logging

High/Low Limits - audible, visual, red/green LED
alarms can be set against any or all parameters

Multilingual Menus

Backlight- user selectable

K-Type Connector for External Measurement

Memory - with reading and statistic review Last 10 records 25,000 records in 999 batches
Manual Logging

Interval Logging2   Adjustable between 1 second and 1 hour

Data Output





USB



Bluetooth® to computer, Android™ & iOSǂ devices



ElcoMaster® software & USB cable



Certificate

  Temperature Range Accuracy Resolution
Gauge#

-20 to +80°C (-4 to +176°F)

±0.5ºC (±1ºF) 0.1ºC (0.1ºF)
Air Temperature (Ta) -20 to +80°C (-4 to +176°F) ±0.5°C (±1°F)3 0.1°C (0.1°F)
Surface Temperature (Ts) -20 to +80°C (-4 to +176°F) ±0.5°C (±1°F) 0.1°C (0.1°F)
External K-Type Thermocouple (Te)

-40 to +200°C (-40 to+392°F)

±0.5°C (±1°F)4 0.1°C (0.1°F)
Relative Humidity (RH) 0 to 100%RH ±3%RH5 0.1%
Gauge & LCD Operating Range -20°C to +80°C (-4°F to +176°F)
Power Supply 2 x AA 1.5V Batteries or via USB Cable
Battery Life Manual Mode: Greater than 40 hours (Backlight Off)
Interval Logging: up to 400 hours (1 reading every 10 minutes)
Dimensions 180 x 75 x 35mm (7 x 3 x 1.4”)
Weight 300g (0.66lb)
Packing List Elcometer 319 Dewpoint Meter, 2 x AA batteries, wrist strap, carry case, calibration certificate, USB cable+, ElcoMaster®+ and operating instructions
